ANSYS DesignModeler

Found 11 file extension associations related to ANSYS DesignModeler and 8 file formats developed specifically for use with ANSYS DesignModeler.

Platform, operating system:  Microsoft Windows icon Microsoft Windows

Go to: ANSYS DesignModeler description

Developer: ANSYS Inc.

ANSYS software list & details

Bookmark & share this page with others:

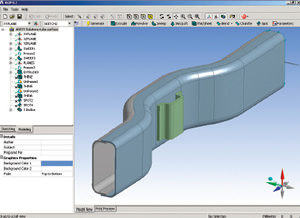

ANSYS DesignModeler picture

ANSYS Inc. logoANSYS DesignModeler

Developer / company: ANSYS

Creating design models is a core part of the product development process and the first step of the simulation process. These models can be of a geometry form representing the actual design detail, or they can be an approximation of the design using simplified components like beams and plates.

Simulation often demands unique modeling capabilities that typical CAD operations do not require. Therefore these capabilities are either lacking in CAD systems or implemented in a fashion that is not optimum for performing simulation related functions.

DesignModeler is a Workbench application from ANSYS that provides modeling functions unique for simulation that include detailed geometry creation, CAD geometry modification simplification and concept model creation tools.

Detail Geometry Creation

DesignModeler offers geometry creation features like extrude, revolve, sweep, chamfer functions and others to create fully parametric models. These models can be used with any ANSYS core simulation product or with products like ANSYS DesignXplorer for performing design optimization.

CAD Geometry Modification

CAD models are usually intended to accurately represent the exact intent of the the final design and often lack additional features required for simulation. DesignModeler provides these unique simulation features like splitting surfaces for applying loads, defining welds or creating regions around models that represent “air.”

Concept Model Creation

Concept models are used in a product development process prior to any detailed CAD geometry being created. These design approximations, along with simulation results, are extremely useful in making product decisions early in the design cycle when product costs can be impacted significantly. DesignModeler has tools for creating these models quickly and then, with ANSYS simulation tools, easily predicting how the proposed design will perform.

Geometry Exchange

DesignModeler can read geometry from any Workbench-supported CAD system. Those parametrically supported CAD systems will also be parametrically associative in DesignModeler. In addition to importing data, DesignModeler can also export data as Parasolid, IGES and the ANSYS ANF geometry format.

The ANSYS DesignModeler software seems to be old or discontinued.
Such programs may not work on modern operating systems properly, are no longer available and supported by their original developers, or are simply obsolete for their purpose. Sometimes companies offer limited support through their website.
