SPEFO

Found 6 file extension associations related to SPEFO and 6 file formats developed specifically for use with SPEFO.

Platform, operating system:  Microsoft MS-DOS icon Microsoft MS-DOS

Go to: SPEFO description

Developer: Astronomical Institute of the Academy of Sciences of the Czech Republic

Bookmark & share this page with others:

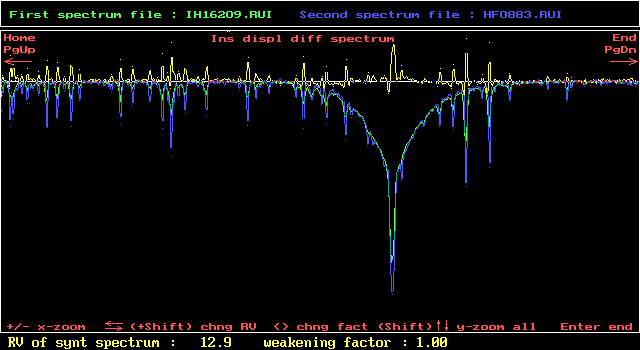

SPEFO picture

SPEFO

Developer / company: Astronomical Institute of the Academy of Sciences of the Czech Republic

SPEFO is a small, yet powerful program used for processing stellar spectra at the Astronomical Institute of the Academy of Sciences of the Czech Republic in Ondrejov. It was originally written in 1990 by Dr. Jirí Horn for processing spectral plates obtained with the 2m telescope of the Ondrejov observatory and scanned with the local five channel microphotometer. Since then the code had been under constant improvement until the sudden death of the author in December 1994. Currently SPEFO is used mainly for the reduction of data from the Ondrejov Reticon detector (1872 pixels, 12 bit A/D), however it can process data from other instruments too, provided that they are in FITS one-dimensional format.

The code was written in Turbo Pascal for MS-DOS; the size of the binaries is less than 350 KB. SPEFO will run on an ordinary PC computer with very modest hardware demands (PC AT 286, 1 MB RAM, 30 MB HD color EGA or VGA). Despite its small size the program is very powerful, and user friendly as well. The basic data reduction tasks such as derivation of the dispersion function, spectrum rectification, Fourier noise filtering, radial velocity and equivalent width measurements are performed in an easy manner, and the user can immediately see changes to the data on a screen plot (e.g., the line position is determined in the ``oscilloscopic'' mode by finding the coincidence of the displayed line and its interactively shifted mirrored profile, the continuum level spline is recalculated after fixing each new point, etc.).

The main output of SPEFO is a table of radial velocities of measured stellar lines (including the atmospheric line correction), their equivalent widths and higher order moments, relative central line intensities and FWHM, together with the HPGL plot file. The program can do basic operations on spectra like comparison of two spectra, subtraction, adding, production of differential spectra or the transformation by rotational broadening. SPEFO can also deal with synthetic spectra produced from various model stellar atmospheres allowing their comparison with real data and hence determining the physical parameters (, chemical composition) of the star under investigation.

SPEFO pictureSPEFO works with the following file extensions:

Note: You can click on any file extension link from the list below, to view its detailed information. The list of extensions used or otherwise associated with the application may not be complete, because many common file extensions on our website, such as jpg (pictures) or txt (text files), can be opened by a large number of applications, or are too general file format. However most, if not all directly associated file extensions should be listed with its appropriate program. Although its likely, that some file extensions may be missing from the list of associated file extensions with the application, yet they can be opened, be part of, or otherwise be associated with the program.

SPEFO default file extension associations

rai file icon.rairfi file icon.rfirri file icon.rrirv file icon.rvrvr file icon.rvrstl file icon.stl

Comparison table of actions that SPEFO can perform with each of its associated file type beta

This table might not contain all possible associated or supported file types or may contain incorrect data.
If you need more information please contact the developers of SPEFO (Astronomical Institute of the Academy of Sciences of the Czech Republic), or check out their product website.

File type \ Action

Open

Save

Edit

View

Play

Convert

Create

Record

Import

Export

Burn

Extract

Recover

Backup

Print

Settings

Other

rai

----------------Yes

rfi

----------------Yes

rri

----------------Yes

rv

----------------Yes

rvr

----------------Yes

stl

----------------Yes
